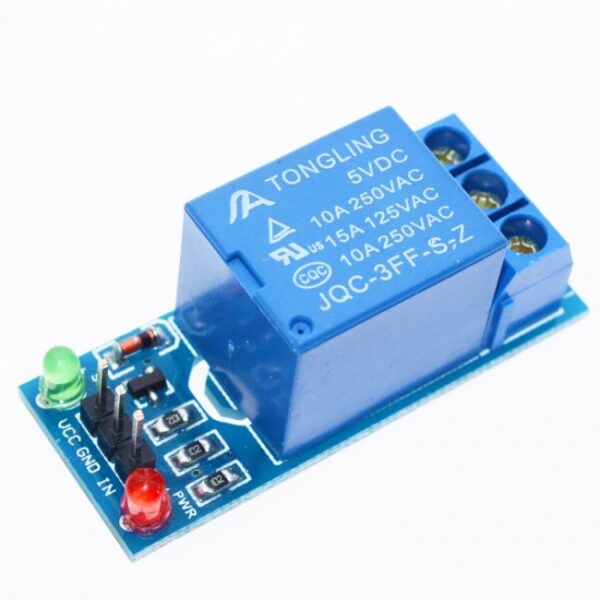

The 5V Single Channel Relay Module 10A is a normally open switch that controls a relay capable of switching much higher voltages and currents than your standard Arduino boards. When the control pin is driven low, a green LED is lit. When the relay is activated, an audible click is heard. A logic HIGH deactivates the relay, and the LED goes off. Specifications: Model: KY-019 Maximum load: AC 250V/10A, DC 30V/10A Trigger current: 5mA Working voltage: 5V Module size: 43 x 17.8 x 16.5mm (L x W x H) Note: The Relay Brand can change. Module Connections 1 x 3 Header GND = Connect to the ground of the 5V power supply IN1 = Relay control input 1. Logic LOW level energises relay 1 Vcc = Connect to 5V power supply Relay Contacts NC = Normally Closed side of the relay Centre Terminal = Common terminal usually connects to the load power source NO = Normally Open side of the relay Package Includes: 5V Single Channel Relay Module 10A Check out our Clearance and on-sale items. Development Resources: Demo Codes, Schematics, Datasheets, Etc Hackaday serves up Fresh Hacks Every Day from around the Internet. Instructables is a community for people who like to make things. Explore, share, and do your next project with us! Where the world builds software Learn Electronics quickly, efficiently and to the point! Arduino’s mission is to enable anyone to enhance their lives through accessible electronics and digital technologies. Wikipedia is a free online Encyclopedia created and edited by volunteers worldwide and hosted by the Wikimedia Foundation. Notes: There may be slight size deviations due to manual measurement and different measuring methods. The picture may not reflect the actual colour of the item because of different photography lights, angles and display monitors.
