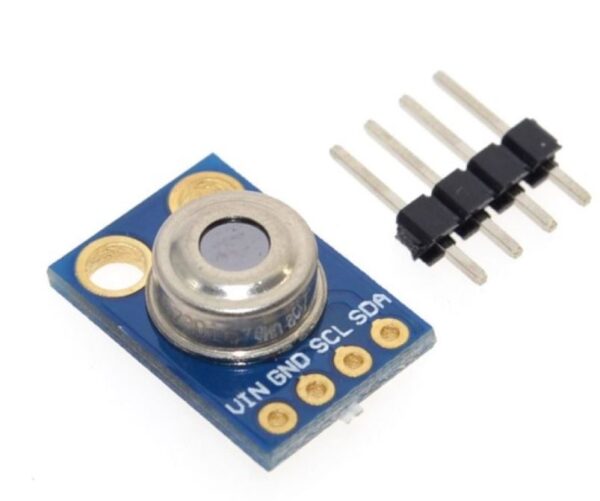

GY-906 MLX90614ESF-BAA is an infrared thermometer designed for non-contact temperature sensing. It has many applications, including body temperature measurement and movement detection. An internal 17-bit ADC and a powerful DSP contribute to the MLX90614’s high accuracy and resolution. The MLX90614 provides two output methods: PWM and SMBus (i.e. TWI, I2C). The 10-bit PWM output provides a resolution of 0.14°C, while the TWI interface has a resolution of 0.02°C. The MLX90614 is factory calibrated in wide temperature ranges: -40 to 85°C for the ambient temperature and -70 to 382.2°C for the object temperature. The measured value is the average temperature of all objects in the Field Of View of the sensor. The MLX90614 offers a standard accuracy of 0.5°C around room temperatures. This device comes in an industry-standard TO-39 package. We’re carrying the 3V version of this sensor. Features Works from 3.3V to 5V input. The Module has a built-in power regulator IC. It has a standard I2C interface with built-in 2x pull-up resistors. Operating Voltage: 3V- 5V Operating Current: 2mA Communication protocol: I2C. Sensor working temperature: -40 to 125 Degree C Sensing temperature range: -70 to 380 Degree C When measuring the temperature, please maintain a measuring distance of 1 cm. PCB dimensions 11mm x 17 mm Easy to integrate The factory was calibrated in a wide temperature range: -40 to 125 °C for sensor temperature and -70 to 380 °C for object temperature. High accuracy of 0.5°C over the wide temperature range (0.. 50 C for both Ta and To) SMBus compatible digital interface for fast temperature readings and building sensor networks Customizable PWM output for continuous reading Power saving mode Automotive-grade Package Contains 1x GY-906 MLX90614 BAA Wiring Diagram MLX90614 and Arduino Development Resources: demo codes, schematics, datasheets, etc Reference for Arduino and reference to all matters Ardunio from Wikipedia Notes: 1. There may be slight size deviations due to manual measurement, different measuring methods and tools. 2. The picture may not reflect the actual colour of the item because of different photographing light, angles and display monitors. Other Related Products Workshop Package Kit for Arduino – 02
