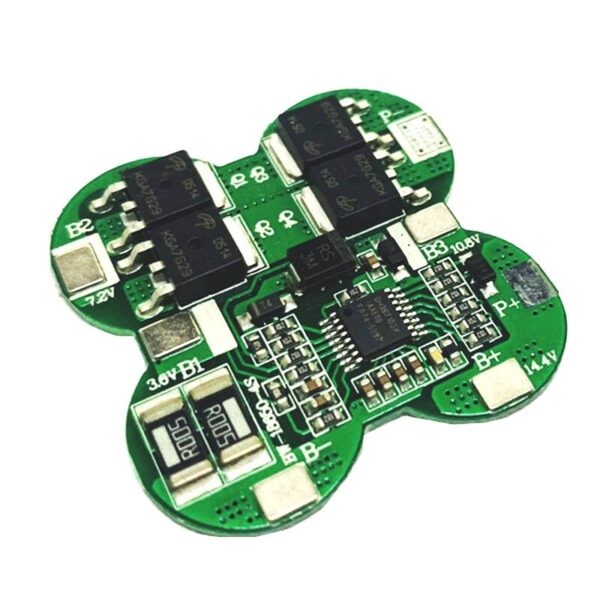

4S 15A BMS 18650 Li-ion Lithium Battery 4 Leaf protection device and charge balancer for lithium elements of type 18650 is essential for safely charging lithium-ion elements. The model in question can manage and stabilize the charge of a group of 4 cells; monitors the individual voltage of the cells by limiting the current in the element to a charge level higher than another, allowing the perfect balance of the voltages of the individual elements and interrupting the flow of current during the fault conditions, overheating and short circuit. Specifically for robotic applications and devices in general, which require an accumulating battery with critical operating current. SPECIFICATIONS: Overload protection: 4.25 ± 0.025V Over-discharge protection: 2.70 ± 0.025V Overcurrent recovery conditions: charge recovery or disconnect load Short-circuit recovery conditions: charge recovery or disconnect load Continuous working current: 15A Maximum charging current: 10A Maximum discharge current: 40A Working power consumption: ≤20uA Main circuit conduction internal resistance: ≤15mΩ Operating temperature: -40 ~ 85 ° C Lifetime:> 30000 hours Dimensions: 36x36x3 mm BMS solder instruction: B connected battery is positive. B1 is the connecting point between battery one and battery 2. B2 connects the point between battery2 and battery 3. B3 Connect the point between battery three and battery 4. B- connect to battery negative end. P- connection charge / discharge positive. P- connection charge / discharge negative. 1 x Package Contains: 4S 15A BMS 18650 Li-ion Lithium Battery 4 Leaf Check out our On Sale and Clearance Items Development Resources: demo codes, schematics, datasheets, etc YouTube Li-ion vs LiFePO4 Batteries: Advantages and Disadvantages Wiki: List of battery sizes Hackaday serves up Fresh Hacks Every Day from around the Internet. Instructables is a community for people who like to make things. Explore, share, and do your next project with us! Where the world builds software Raspberry Pi Foundation What would you like to make today? Arduino‘s mission is to enable anyone to enhance their lives through accessible electronics and digital technologies. Wikipedia is a free online encyclopedia created and edited by volunteers worldwide and hosted by the Wikimedia Foundation. Notes: 1. There may be slight size deviations due to manual measurement, different measuring methods and tools. 2. The picture may not reflect the actual colour of the item because of different photographing light, angles and display monitors.
